Name: EPI808, Small size Healthlead desktop air purifier, Pre-filter+99% HEPA used, Electric control with LED display design.
Brand: Healthlead
SKU: EPI808
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (124 reviews)

상세 정보
제품 설명

상세 정보
상품 종류:	데스크탑 공기 정제 장치	상품 이름:	탁상용 공기 청정기
모델 부정.:	EPI808	형태:	둥글고 아름답고 관대 한 외모
출현:	둥근, 아름다운	색:	백색
표준 색:	백색, 검정	로에스 지시:	예
특징:	삭제 세균	기능:	삭제 세균
기능 기능:	음이온 방출	필터:	hepa
전 여과기:	빨 수 있는	단위 중량:	0.48 킬로그램
일 전압:	DC5V	재료:	ABS
제품 치수:	125X125X135mm	제품 차원:	125X125X135mm
패키지:	선물 상자/판지	기프트박스 사이즈:	152X152X163mm
마스터 통 사이즈:	320X320 X 510mm	PCS/CTN:	12 PC / 카튼
NW: /Ctn:	6.96kg	GW:./Ctn:	7.96kg
삽화/로고:	고객의 로고 또는 당사 로고 "Healthlead"	승인:	세륨, GS, ETL
가격 기간:	FOB 센즈헨	보증 기간:	1년이요
정격 전압 (V/Hz):	DC12	정격 인가전력 (W):	3
최대는 (DB(A)를 퍼뜨립니다:	40	미세먼지 CADR값(㎥/h):	15
포름알데히드 CADR값(㎥/h):	7	적용면적(㎡):	개인
비상 전원:	<i><0.5W.</i> <b><0.5W.</b> <i>4</i> <b>4</b>	정화 효능 CADR:	5CFM
이온 농도를 부정하세요:	> 100만/cm3	속도:	2 기어
제어판:	작동하도록 쉽습니다	단추:	접촉 단추
작동:	하나의 키 작동	브레이스링 빛:	청색
지시자:	블루 라이트 표시기

제품 설명

Production Function and Specifications

Model	EPI808
Product Name	Hepa Air Purifier
Function	Collect all kinds of dusts as below, floating mildew, fungus, and virus, acarus inspect & irritability substance
	and dejecta,fir pollen smoke, pet dander,lamblack,co element, dust and sand.
	Eliminate manifold odors such as pet odor, closet odor, human odor, dish odor, midew odor, smoke odor.
	Decompose some poisonous and harmful gas, such as form aldehyde, benzene, xulene etc.
	Kill bateria
	Release negative ion
Specification	Work voltage: DC5V
Specification	Unit Weight: 0.48 kgs
Features	99% Hepa type filter
	Washable pre-filter
	More than 1 million negative ion output
	Electric control with LED display
Material	Fireproofing ABS
Product Size	125X125X135mm
Package	Giftbox/Carton
Giftbox Size	152X152X163 mm
Master Carton Size	320X320 X 510 mm
Pcs/Ctn	12 pcs/ctn
N.W.: /Ctn	6.96 kgs
G.W.:./Ctn	7.96 kgs
20 FCL	5,040 pcs
40 FCL	10,800 pcs
40 HQ	12,600 pcs
Artwork/Logo:	customer's logo or our logo "Healthlead "
Standard Color	White,black
Approval	CE ,GS, ETL
ROHS Directive	Yes
Price Terms	FOB shenzhen
Period of validity	The price valid for three months
MOQ	3,000 pcs
Payment Term	T/T or L/C at sight
Lead Time	45 days
Production Capacity	2,000 units / per day
Warrantee Period	1 year
Made In China	Yes

Product description

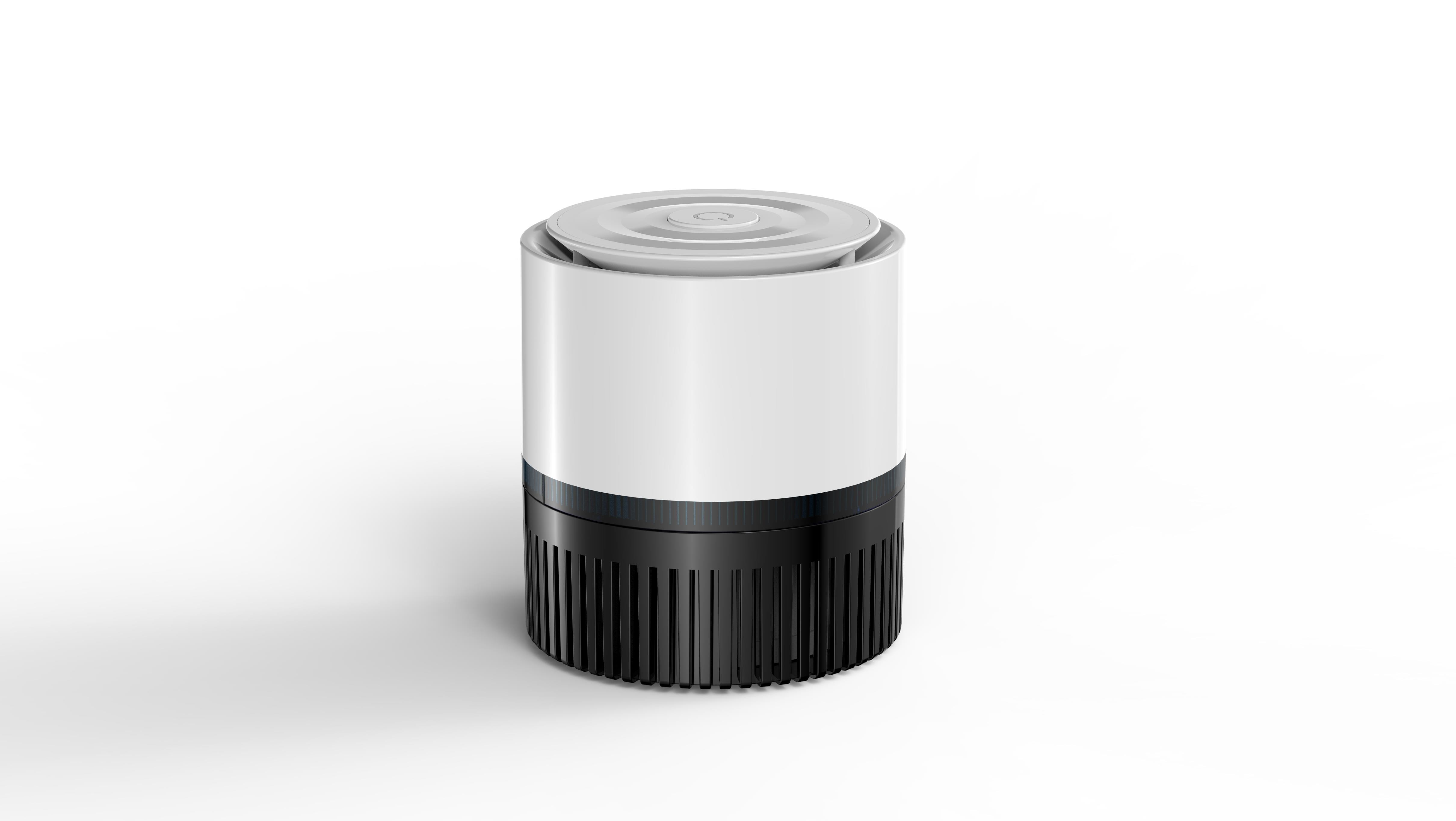

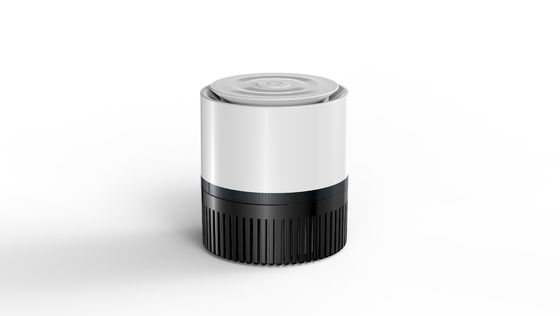

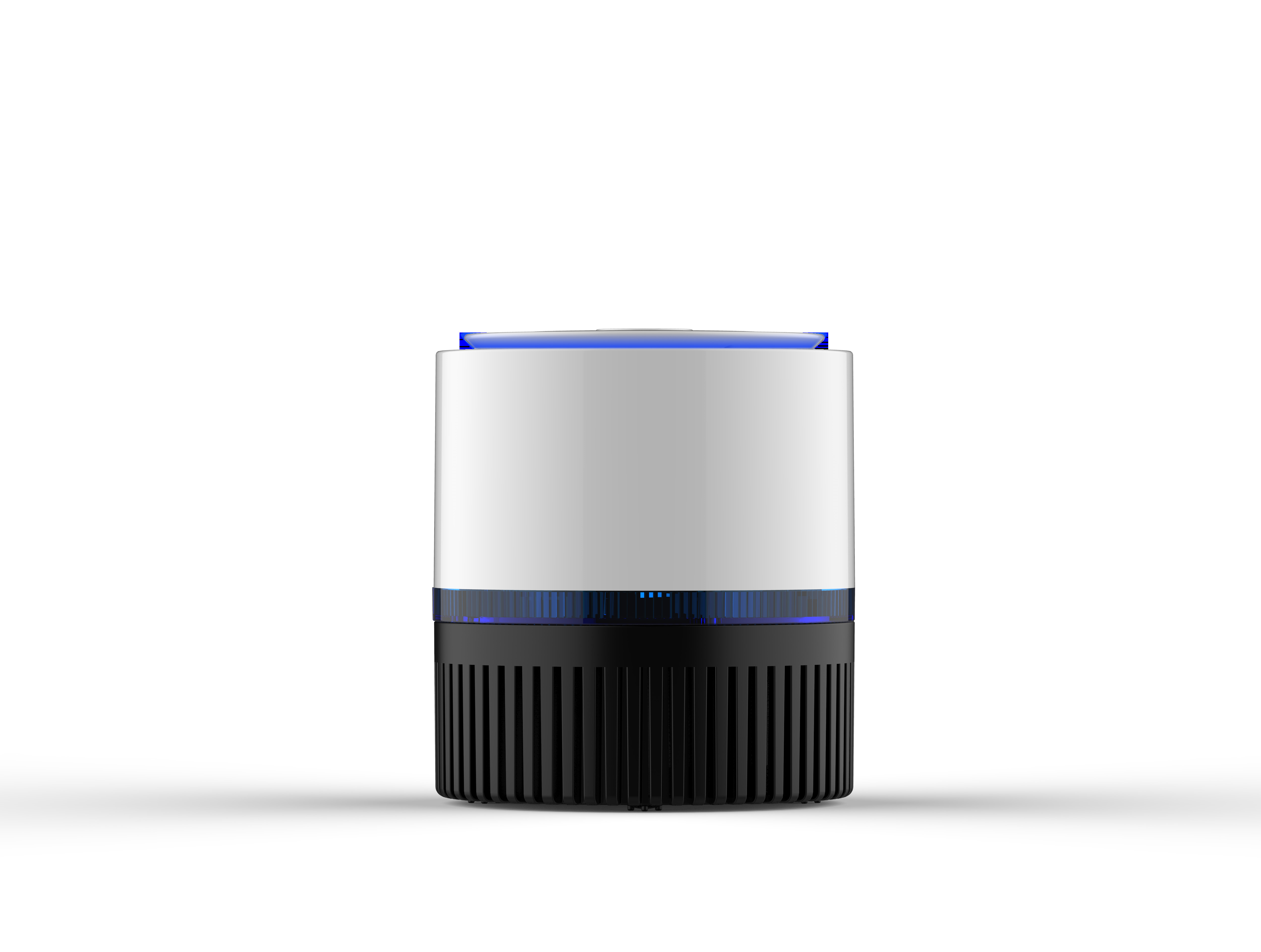

1. This product is one of our desktop air purifier, the body is round, beautiful and generous appearance, white, air inlet on all sides, air outlet above, operation panel at the top. The following figure.

2. This product is suitable for office, home and other indoor environments, with PM2.5 value display, efficient filtration and adsorption (including lint, dust particles, pollen, mites and organic gases, etc.), separate control of lighting, low power consumption and other functions and features, and easy to operate.

The main function

1. Multilayer filtration system (washable pre-filter + HEPA filter + activated carbon filter + negative ion)

2. Night light function

3. 2 wind speed adjustment, rapid smoke clearance, sleep function

4. Three colours show air quality

Spedifications

Rated voltage (V/Hz) DC12

Rated input power (W) 3

Maximum Noise (dB(A)/Sound Power Level 40

CADR value of particulate matter (㎥/h) 15

CADR value of formaldehyde (㎥/h) 7

Applicable area (㎡) personal

Product size (mm) 160160117

Product functions:

1. Highly effective in removing PM2.5, smoke, dust, pollen, mites and other allergic particles.

2. Remove harmful toxic gases released from indoor decoration, furniture, etc. 3.

3. meet the requirements of low power consumption (standby less than 0.5W).

4. separate light off function.

Technical parameters.

1. Applicable power supply: 230VAC ±10% 50Hz European standard

240VAC ±10% 50Hz British standard

2. Rated power: 2W Rated current: 0.05A

3. standby power: <0.5W. 4;

4. Low voltage start: 184VAC 50Hz. 5;

5. Purification efficiency CADR: 5CFM(-10%)

6. Top-grade noise: ≤ 55dB(A) (sound pressure level)

7. Negative ion concentration: > 1 million/cm3

8. power and speed.

Gear	Sleep	High grade
Rotation Speed (RPM)	1800±10%	1800±10%
Rate(W)	1.5±0.5W	1.7±0.5W

Certificates

EPI808, Small size Healthlead desktop air purifier, Pre-filter+99% HEPA used, Electric control with LED display design. 0

EPI808, Small size Healthlead desktop air purifier, Pre-filter+99% HEPA used, Electric control with LED display design. 1

Product Pictures

Packaging and shipment

EPI808, Small size Healthlead desktop air purifier, Pre-filter+99% HEPA used, Electric control with LED display design. 2

Company Profie

Healthlead is one major leading professional air purifier, mini dehumidifier and environmental protection material developing, manufacturing and marketing high- tech enterprise, Registered capital is US$10 million and factory coverage is 42,000 sq meters . Owing with professional and innovating product development capability, Healthlead becomes key OEM & ODM supplier of mostly im porter and distributor in North America, China and Europe etc. Healthlead factory quality system was approved by ISO9001, ISO1400 1, BSCI, and authorized by US JCS, Whirlpool, The Home Depot, TTI, Germguardian, Homedics, Bissell, Europe ALDI, LIDL, B&Q, Auchan, China Suning, Huawei, Haier, Konka, TCL, Airmate, Chigao, Royalstar, Westinghouse for factory audit. The factory owns in-house safety approval lab to performance and relia bility test to meet different customer’s product need. Daily production capability is 20,000 units to 25,000 units in order to on-time delivery.

EPI808, Small size Healthlead desktop air purifier, Pre-filter+99% HEPA used, Electric control with LED display design. 4

EPI808, Small size Healthlead desktop air purifier, Pre-filter+99% HEPA used, Electric control with LED display design. 6

EPI808, Small size Healthlead desktop air purifier, Pre-filter+99% HEPA used, Electric control with LED display design. 7

EPI808, Small size Healthlead desktop air purifier, Pre-filter+99% HEPA used, Electric control with LED display design. 8

Our Advantages

20 years experience in airpurifier OEM & ODM service. Approved by ISO9001,2015, ISO14001. ETL, GS, CE safety laboratories authorized by Intertek. More than 30 R& D engineers. Six-stage of air purification system combined pre-filter, Hepa filter, active carbon filter, Nona-silver antibacterial, ionizer, photocatalyst filter, UV.

FAQ

1.What is CADR?
CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room. Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers.
First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

2. What is CFM and CMH of CADR?
1 CFM=1.71CMH

3. TROUBLESHOOTING GUIDE
A. Unit shuts off unexpectedly or does not operate.
Check that the unit is plugged into a working electrical outlet.
Check that the motor protector is triggered.
Check that the filter is in the unit and locked.
Check that the front panel is latched firmly in place.
B. No air circulating from unit
Unplug unit. Check filter. Replace filter if necessary.
C. Increase in noise level
Make sure the filter is clean. Replace if necessary.
D. Odors and smoke are not removed.
Clean or replace the filter if it appears to be heavily soiled.
E. The discharged air has an aroma or odor
Check to see if the filter is heavily soiled. Replace the filter. Turn off the Ionizer
F. Air quality indicator constantly shows poor air quality
Wipe the lens with a clean cloth or vacuum to remove any dust that has settled on the sensor.
G. Filter change indicator flicks
Need to manual reset by long pressing filter change icon for 5 seconds, then release after heard the buzzer
H. The unit can not power on without buzzer and power icon lighting
Replace with new power PCBA
I. The unit can power on with power icon lighting, but speed can not be set.
Replace with new control PCBA
J. The unit can power on but some displays show defective
Replace with new control PCBA
K. The unit’s PM 2.5 digital value shows different from ambient environment within 30% tolerance.
Comply with particle sensor spec.

L. The unit’s PM 2.5 digital value shows different from ambient environment beyond 30% tolerance.

Replace with new particle sensor.

M. The unit’s VOC digital value shows different from ambient environment.

Replace with new VOC sensor.

N. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Remove filter plastic bag and re-install filter, then re-start.

O. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Replace with new motor

P. No ion comes out

Disassembly the unit, and re-insert ionizer module wire socket

Q. There has odor coming out from outtake grill

Replace with new filter

R. The unit is power on but some display missed

Replace with new display board.

S. Wifi can not be connected

Reset the route as 2.4G

T. Wifi can not be connected

Replace with new Wifi module

U. Power button is invalid after turn on with heard buzzer

Replace with new control panel or magnetic switch board
